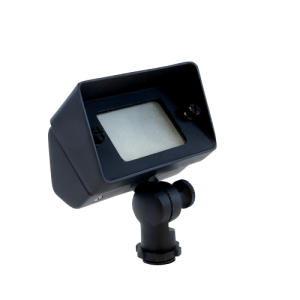

ECO WALL WASH
The Eco Series Wall Wash comes with a G4 Rectangular Wafer (3W 2700K 120° 270 Lumens) and is ready to install right out of the box with a frosted glass lens. There are three glass lenses from which to choose for the desired effect. The frosted and glass lenses offer a 98° horizontal beam spread and the prism lens expands the horizontal beam spread to 114°. The spun brass construction features a baked enamel finish. The Eco Wall Wash features an adjustment system which allows for 18 points of articulation of the knuckle.
| ECO WALL WASH | |
|---|---|
| Use | Uplighting, Grazing, and Backlighting Techniques. Best for Low Level Wall Wash |
| Finish | Black Brass Baked Enamel |
| Includes | Lamp, Frosted Glass Lens, Clear Glass Lens, Prism Glass Lens, and ABS Mounting Stake |
| Order with Lamp
G4 Rectangular Wafer, 3W, 2700K |
ECO-WW-G4-WAFER |
Fixture Finishes
The Eco Wall Wash has a Black Brass Baked Enamel finish.
To clean the fixture, periodically wipe it down with a mild soap and water.
INSTALLATION
SOFT SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE
-
Connect the power cable from the fixture body to the landscape cable.
-
Lay the power cable into the slotted relief on the stake.
-
Press the fixture and stake into the ground.
-
Use a level to ensure the top of the stake is level with the ground.
HARD SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE
-
Unscrew the fixture body from the stake.
-
Dig a hole approximately 4” wide by 10” deep and gently tap the stake into the ground with a rubber mallet.
-
Use a level to ensure the top of the stake is level with the ground.
-
Reinstall the fixture body onto the stake and lay the power cable into the slotted relief on the stake.
-
Connect the power cable from the fixture body to the landscape cable.
ADJUSTING THE FIXTURE
-
Turn the thumbnut counter-clockwise to loosen the knuckle.
-
Rotate the fixture vertically to the preferred position.
-
Turn the thumbnut clockwise to hold it in the preferred position. Adjusting the fixture allows for dark sky ordinance applications.
CHANGING OUT LENSES
-
Use a screwdriver to remove the two screws and then remove the lens cover.
-
Remove the lense from the gasket and place the new lens in the gasket.
-
Reattach the two screws to the lens cover and tighten.
