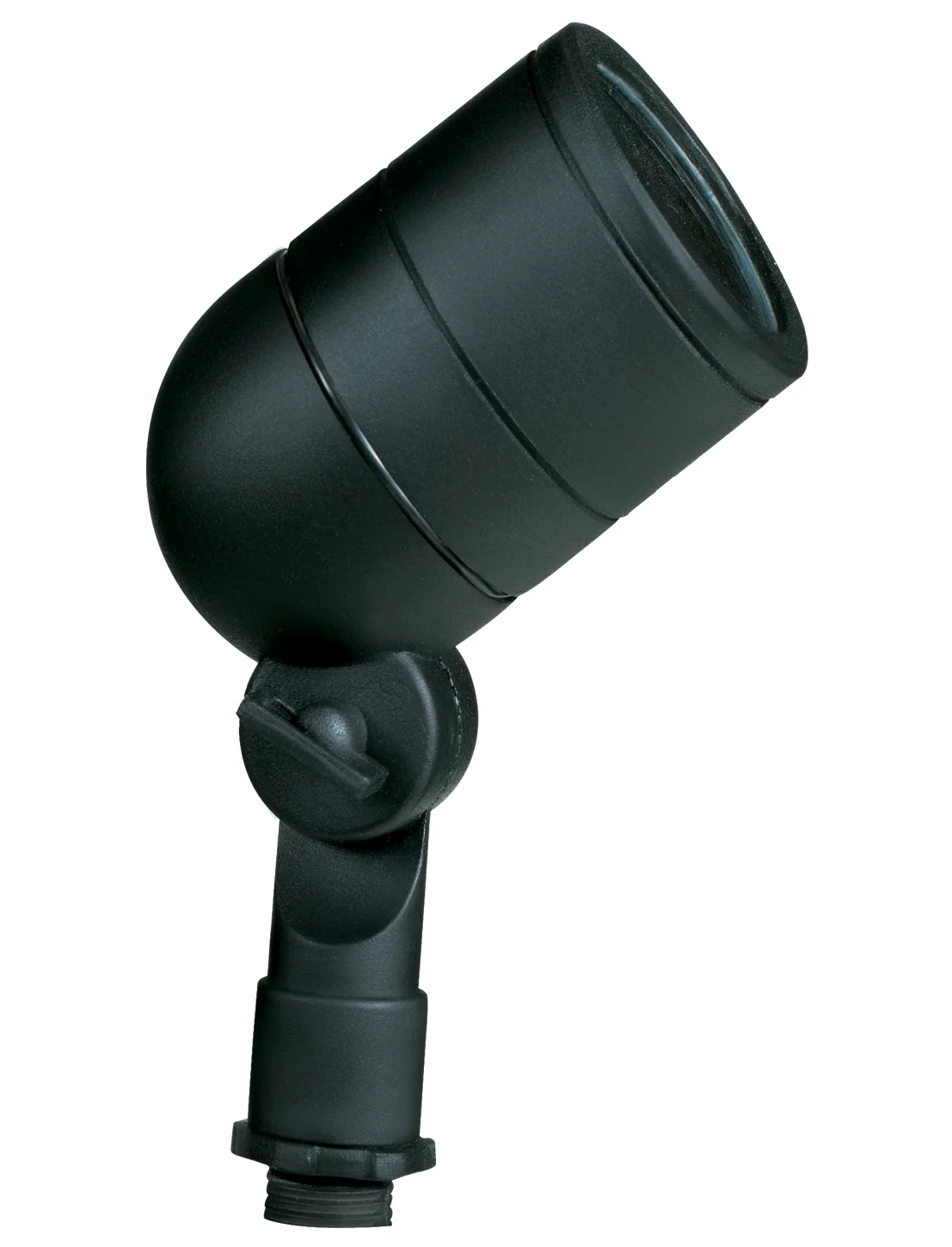

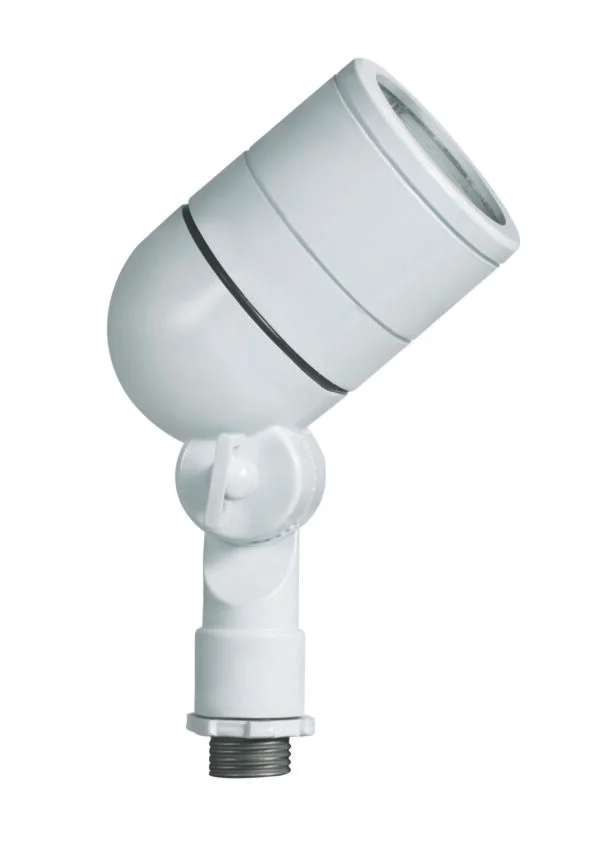

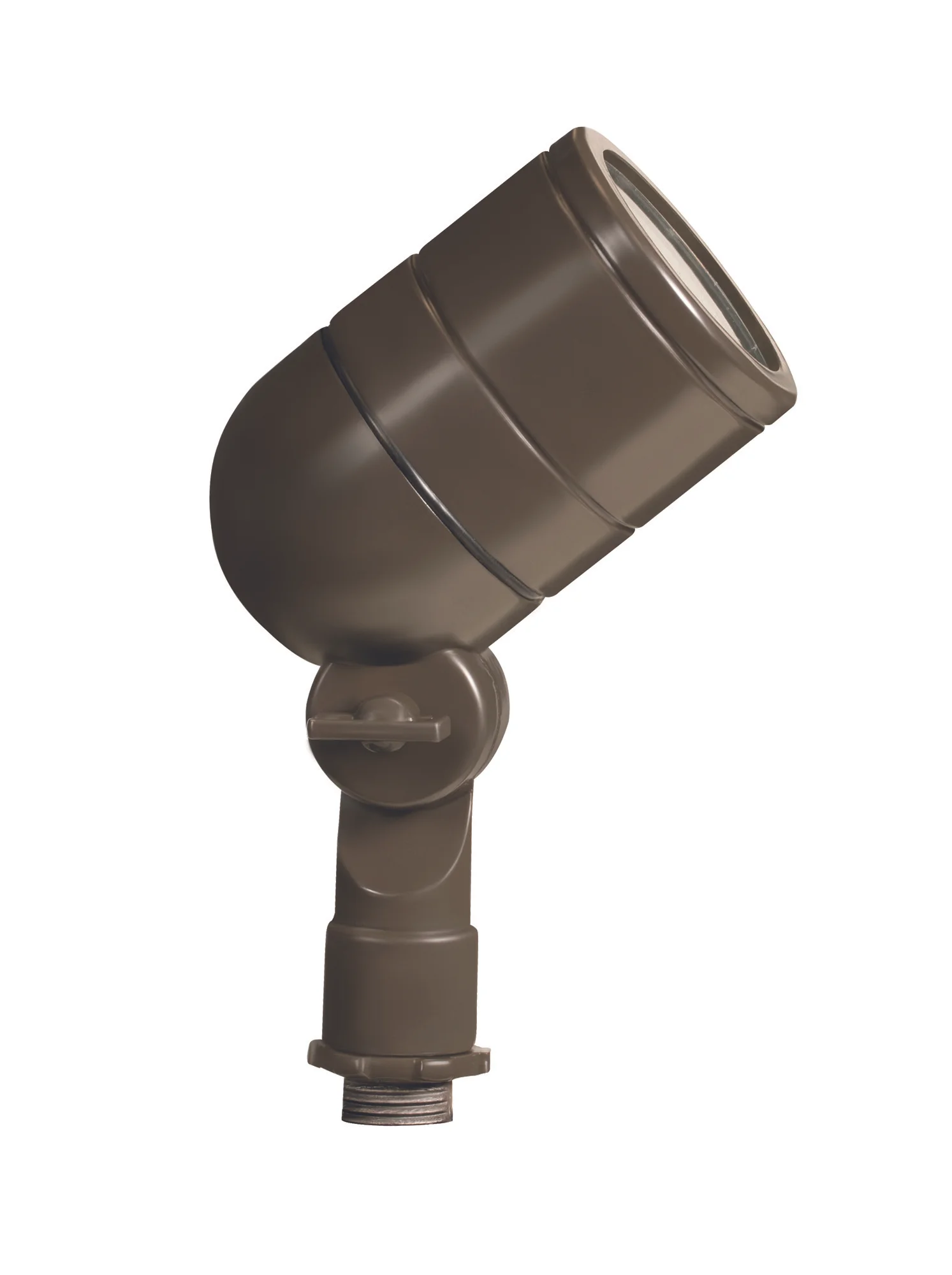

CL-515 Die-Cast Aluminum Directional Lights by Corona Lighting
HOUSING:
Die-cast aluminum.
FINISH:
Polyester UV powder coated, available in
BK-Black, BZ-Bronze,
GT-Granite,
RT-Rust,
VG-Verde Green,
WH-White.
LENS:
Clear, tempered, and heat resistant glass with silicone gasket.
See accessories & parts for special effect lenses and honeycomb louver.
LAMP TYPE:
12V, MR-16 halogen, 35W max.
See lamp guide for LED and
color MR-16 lamps.

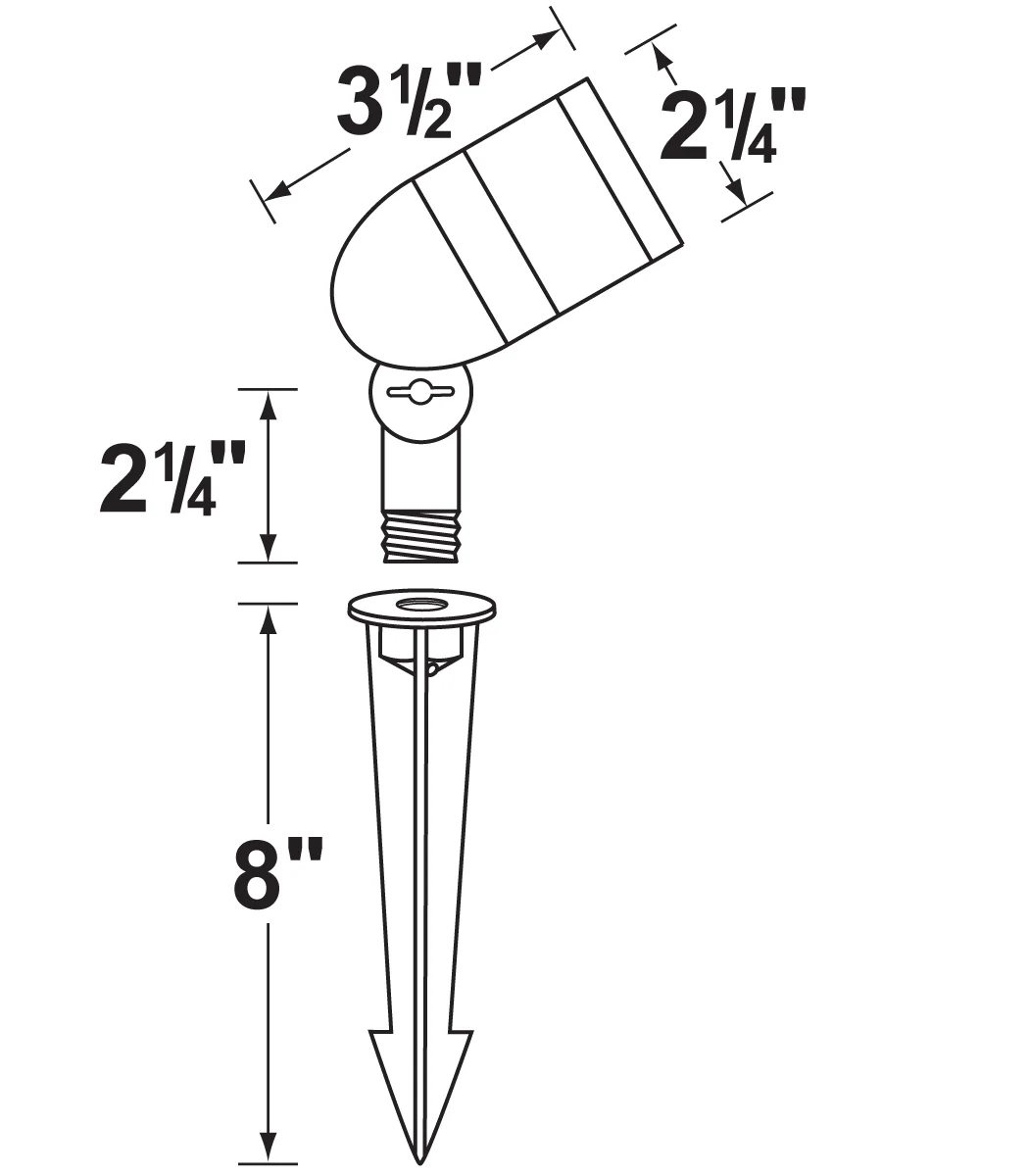

MOUNTING:
Adjustable cast aluminum
knuckle with 1/2” NPT, including
ground spike. Wire connector
excluded.
See accessories & parts for
optional mounting hardware.
WIRING:
Fixture is prewired with a 3-foot pigtail of direct burial cable.
Remote 12 Volt transformer is required.
See transformers and accessories for variety of options and choices.
When ordering, add the 2 letter color code to the end of the product numbe
