5203 Up Light by Vista Lighting

Zoom

~~$132.75~~ $112.84 (Excl. CA. Sales Tax)

Weight: 3lb

Choose Vista Finish Color ^* B - Black Z - Architectural Bronze DZ - Dark Bronze GT - Granite W - White

Vista Lamp Option ^* No Lamp 2.5 WATT T3 LED - LNT3-2.5-W-S-LED (+$44.61)

How many ?

Category Spot Lights / Up Lights

Supplier

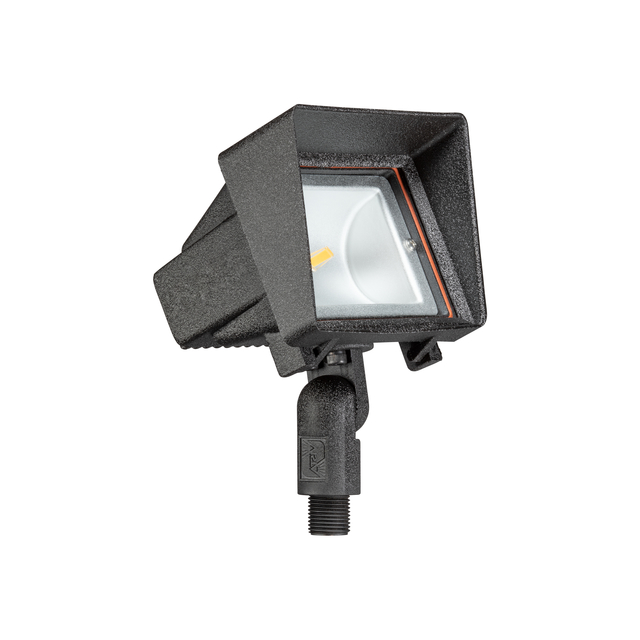

5203 Up Light by Vista Lighting

Powerful and compact, this low voltage flood light fixture is constructed of injection-molded, fiber-reinforced composite for strength and high UV stability and is warranted for ten years against corrosion. The hinged shroud opens easily for lamp maintenance and is fitted with a silicone gasket to ensure a superior weather-tight seal under harsh conditions. A clear, tempered, shock and heat resistant soda-lime glass lens safeguards the lamp and optics. A super durable polyester powder-coated finish is applied and available in 18 colors. The intelligently engineered fully adjustable knuckle is made from injection-molded, fiber-reinforced composite which effectively isolates the fixture from the harmful corrosive soil. Mounting hardware is included – choice of ABS ground stake, mounting canopy, or tree-mount canopy.

FIXTURE SPECIFICATIONS:

HOUSING:

Injection-molded, glass-reinforced Ryton® R4 composite for strength & high UV stability – warranted for ten years against corrosion.
SHROUD:
Injection-molded, glass-reinforced polymer (Ryton® R-4) tted to housing with a silicone O-ring gasket – providing a superior weather-tight seal. Hinged shroud opens easily for access to lamp & is latched securely with a stainless steel screw at top to assure compartment maintains its weather- tight seal.

FINISH:

Polyester powder-coat nish available in Black, Dark Bronze, Granite, White, Architectural Brick, Light Bronze, Special Bronze, Glossy Grey, Rust, Hunter Green, Weathered Bronze, Weathered Iron, Graphite Metallic, Verde, Pewter, Mocha and Olde Finish.

SOCKET/LAMP HOLDER:

Top grade American-made ceramic socket with nickel contacts, stainless steel springs, & Te on-jacketed wire leads.
LENS:
Clear, tempered, shock & heat-resistant, soda-lime glass lens. Optical effect lenses are available.

LAMP TYPE:

T4 – 75W max. LN-20 T4 Halogen (20W) Standard.
LED T3 - 2.5W. LNT3-2.5-W-D-LED

REFLECTOR:

Mirror- nish high-performance aluminum re ector for maximum light output.
MOUNTING:
Injection-molded, glass-reinforced Ryton® R-4 composite adjustable knuckle with 1⁄2” NPT. Fixture may be mounted into threaded hubs in junction boxes, ground stakes, tree-mount boxes, or mounting canopies.FASTENERS:

All fasteners are stainless steel.

WIRING:

Prewired with a three-foot pigtail of 18-2 direct-burial cable & underground connectors for a secure connection to supply cable.
CERTIFICATION:
UL Listed to U.S. & Canadian safety standards for low voltage landscape luminaires (UL 1838). Maximum wattages allowed by UL for U.S. & Canadian markets vary. Maximum wattages speci ed are UL U.S. standard. Please contact Vista for any questions about maximum wattages allowed by UL Canadian standards.
