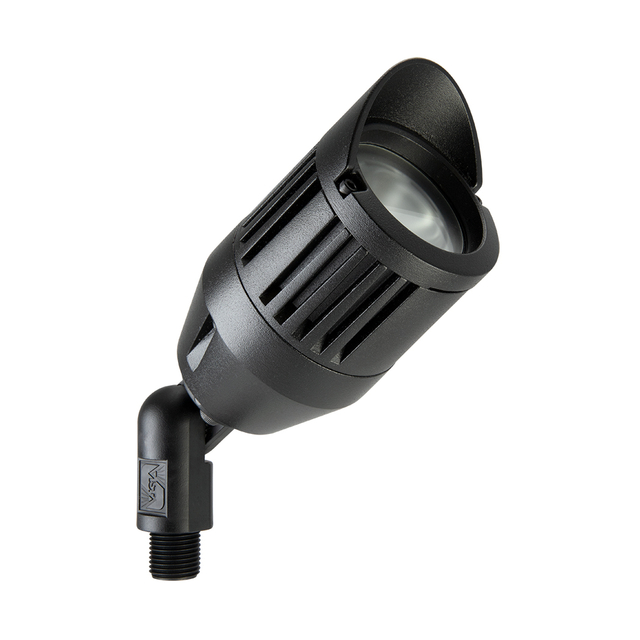

3106 Up Light by Vista Lighting

$268.79 $228.47 (Excl. CA. Sales Tax)
Weight: 2.4lb
Choose Vista Finish Color *
Vista Lamp Option *
How many ?

Category Spot Lights / Up Lights
Supplier vista_lighting-png

3106

4.5 Watt 2700k

The 3106 is ready to install with factory fitted integrated high density array (HDA) LEDs. This low voltage up & accent fixture is configured with hi-performance reflector optics, integral drivers, and is constructed of die cast aluminum. These LEDs will be able to deliver comparable light levels in the 20W, 35W, and 50W halogen range (up to 800 lumens) with wattages ranging from 4.5W to 13W. The 3106 will be able to dim using the Vista vPRO electronic transformer and the complete line of Vista transformers. A patent-pending silicone diaphragm gasket allows the fixture to breathe during thermal cycling to prevent moisture from being drawn into the fixture. The door is designed to shed water from the lens surface. A durable polyester powder coat finish is applied and available in 18 colors. The fully adjustable knuckle is made from injection-molded, fiber-reinforced composite which effectively isolates the fixture from the harmful corrosive soil. Mounting hardware is included – choice of ABS ground stake, mounting canopy, or tree-mount canopy.

Specifications

FIXTURE SPECIFICATIONS:

HOUSING:

Die-cast, copper-free aluminum.

SHROUD:

Die-cast, copper-free aluminum tted to housing with a closed-cell molded silicone gasket – providing a superior weather-tight seal. Door is designed to shed water from the lens surface.
FINISH:

Durable powder coat nish available in Black, Architectural Bronze,
Dark Bronze, Granite, White, Architectural Brick, Light Bronze, Special Bronze, Glossy Gray, Rust, Hunter Green, Weathered Bronze, Weathered Iron, Graphite Metallic, Verde, Pewter, Mocha and Olde Finish. Custom Powder coat nishes available on request.
LENS:
Clear, tempered, shock and heat-resitant, soda-lime glass lens.
LAMP TYPE:
LED Lamp Only - Cree® MT-G2 High Density Array (HDA) driven at 4.5-watts, 9.5-watts, or 13-watts. Color temperature available in
27 - (2700K),W - Warm (3000K), 35 - (3500K), N - Neutral (4000K), C - Cool (5000K).
ELECTRICAL:
Input voltage range 9 - 15V AC.

Optics

Available in VNS - Very Narrow Spot, SP - Spot, MF - Medium Flood, or WF - Wide Flood.
MOUNTING:
Injection-molded composite adjustable knuckle with 1⁄2” NPS thread. Fixture may be mounted into threaded hubs in junction boxes, ground stakes (GR), tree mount boxes (TR), or mounting canopies (WR).FASTENERS:

All fasteners are stainless steel.

WIRING:

Prewired with a 36” pigtail of 18-2 direct-burial cable and underground connectors for a secure connection to supply cable.

vista color chart

3106 Up Light

3106 Installation Guide

3106 Spec Sheet
