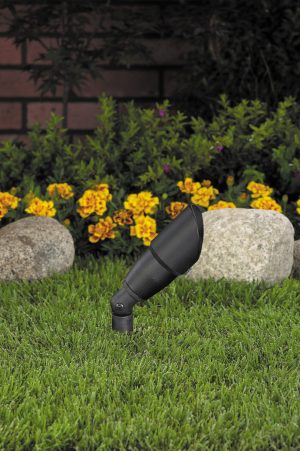

2216 Up Light by Vista Lighting

Highly versatile, this low voltage up & accent fixture is constructed of die-cast, copper-free aluminum for strength and reliability. The fully rotatable shroud is fitted with dual silicone o-ring gaskets to ensure a superior weather-tight seal under harsh conditions. A clear or frosted convex glass lens safeguards the lamp and optics. A super durable polyester powder coat finish is applied and available in 18 colors. The intelligently engineered fully adjustable knuckle is made from injection-molded, fiber-reinforced composite which effectively isolates the fixture from the harmful corrosive soil. The 2216is shipped with a no lamp, unless otherwise specified. Mounting hardware is included – choice of ABS ground stake, mounting canopy, or tree-mount canopy.

FIXTURE SPECIFICATIONS:

HOUSING:

Die-cast, copper-free aluminum.

SCREWLESS LOCKING SHROUD:

Die-cast, copper-free aluminum tted to housing with a silicone O-ring gasket for superior weather-tight seal secured to the housing by a secondary

locking ring.

FINISH:

Durable powder coat nish available in Black, Architectural Bronze,
Dark Bronze, Granite, White, Architectural Brick, Light Bronze, Special Bronze, Glossy Gray, Rust, Hunter Green, Weathered Bronze, Weathered Iron, Graphite Metallic, Verde, Pewter, Mocha and Olde Finish. Custom Powder coat nishes available on request.
SOCKET/LAMP HOLDER:
Top grade ceramic socket with nickel contacts, stainless steel springs, and Te on-jacketed wire leads.
LENS:
Clear or frosted convex glass lens. Optical effect lenses are available; see accessories column on xture ordering information chart.
LAMP TYPE:

MR-16 Halogen – 35W maximum. LN-20 BAB (20W) Standard.
MR-16 LED Lamp - 36° Flood, 4.5W is standard.

MOUNTING:

Injection-molded, Noryl GTX® adjustable knuckle with 1⁄2” NPS stem. Fixture may be mounted into threaded hubs in junction boxes, ground stakes (GR), tree mount boxes (TR), or mounting canopies (WR).FASTENERS:

All fasteners are stainless steel.

WIRING:

Prewired with a three-foot pigtail of 18-2 direct-burial cable and underground connectors for a secure connection to supply cable.CERTIFICATION:
UL Listed to U.S. and Canadian safety standards for low voltage landscape luminaires (UL 1838). Maximum wattages allowed by Underwriters Laboratories (UL) for U.S. and Canadian markets may vary. Maximum wattages speci ed are Underwriters Laboratories U.S. standard. Please contact Vista for any questions about maximum wattages allowed by UL Canadian standards.
