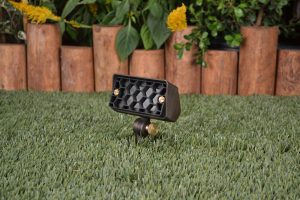

Stellar 12 Volt Brass Up Light by Unique Lighting Systems
A miniature version of the Starburst, the Stellar mini wall washer is a powerful fixture. Featuring a small die cast brass body, this undersized power house is able to illuminate planter areas, short retaining walls, step landings or any other area needing a soft glow. Advance applications include under eaves or second story level lighting*.
*(Round Mounting Base needed when installing the Stellar on a surface mount application.)
Body
Precision machined from solid brass casting. Body design provides enclosed, water resistant wireway to protect wires. Features an integral knuckle for maximum mechanical strength.
Gasket
High temperature silicone gasket for water-tight seal.
Knuckle
Machined brass knuckle with a solid brass adjustable thumb screw. Vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake.
Shroud
Precision machined and comes with a factory sealed shock resistant tempered glass lens to prevent water intrusion. Includes external injection molded hex louver. Accepts up to one additional lens.
Lens
Comes with a complete set of optical designer lenses including: spread lens, frosted.
Lamp
For use with 20W max. Astro-Brite lamp. FLEX™ Series LED lamps are available in 1W and 2W T3. LED lamps are available in 3000K color temperatures.
Electrical Requirements
A remote 12V or 24V transformer required, may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 24V halogen lamps is 21.6V to 24V. Voltage range for FLEX™ Series LED T3 lamps is 10V-18V.
Lamp Connection
Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring
Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Stake
Standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
Finish
Exclusive Weathered Brass finish is standard. Unique™ Lightings’ weathered brass finish is a “living finish” and will naturally patina and change over time. Polyester powder coat finishes are also available.
Warranty
The Odyssey Family of products from Unique Lighting Systems® carries a Limited Lifetime Warranty against manufacturer’s defects.
Manufacturing
Manufactured to ISO 9001-2008 Quality Systems Standard.
