Black Diamond Wall Wash

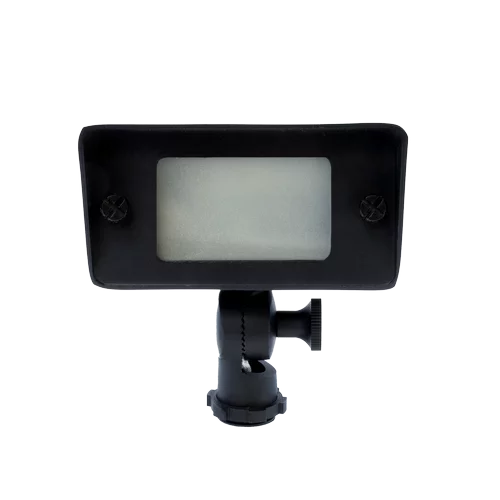

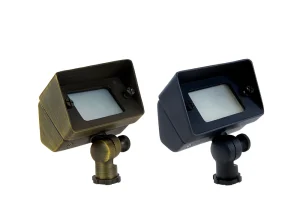

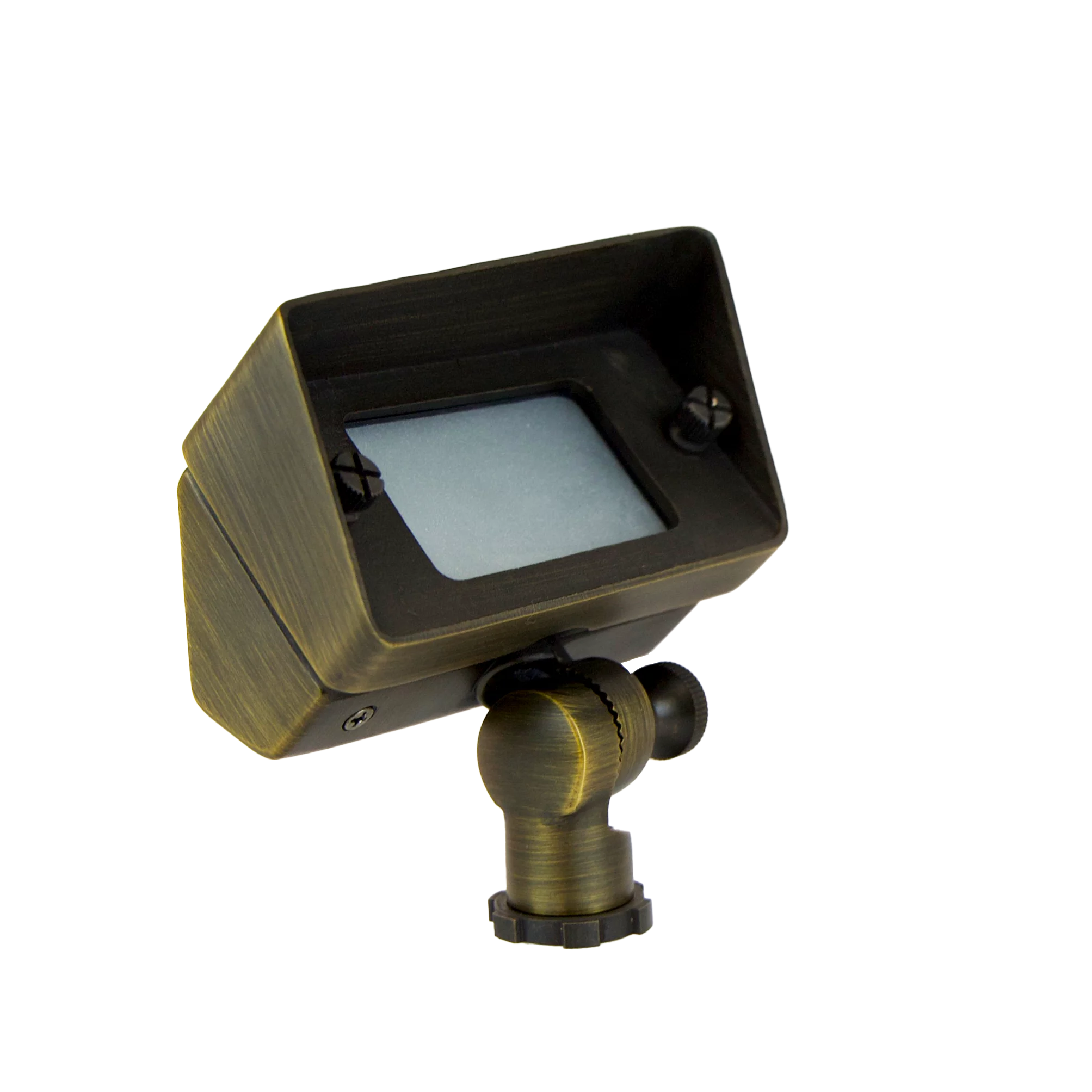

The Black Diamond Wall Wash is without a lamp or with a G4 Rectangular Wafer and is ready to install right out of the box with a frosted glass lens. There are three glass lenses from which to choose for the desired effect. The frosted and glass lenses offer a 98° horizontal beam spread and the prism lens expands the horizontal beam spread to 114°. The spun brass construction features a baked enamel finish in black(BK) or bronze(BZ). The Black Diamond Wall Wash features an adjustment system which allows for 18 points of articulation of the knuckle.
SOFT SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE
-
Connect the power cable from the fixture body to the landscape cable.
-
Lay the power cable into the slotted relief on the stake.
-
Press the fixture and stake into the ground.
-
Use a level to ensure the top of the stake is level with the ground.
HARD SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE
-
Unscrew the fixture body from the stake.
-
Dig a hole approximately 4” wide by 10” deep and gently tap the stake into the ground with a rubber mallet.
-
Use a level to ensure the top of the stake is level with the ground.
-
Reinstall the fixture body onto the stake and lay the power cable into the slotted relief on the stake.
-
Connect the power cable from the fixture body to the landscape cable.
ADJUSTING THE FIXTURE
-
Turn the thumbnut counter-clockwise to loosen the knuckle.
-
Rotate the fixture vertically to the preferred position.
-
Turn the thumbnut clockwise to hold it in the preferred position. Adjusting the fixture allows for dark sky ordinance applications.
CHANGING OUT LENSES
-
Use a screwdriver to remove the two screws and then remove the lens cover.
-
Remove the lense from the gasket and place the new lens in the gasket.
-
Reattach the two screws to the lens cover and tighten.
