Brilliance Metal Works Guadalupe Wall Light
GUADALUPE
The Guadalupe is an integrated lamp and fixture that casts light from wall-mount applications in outdoor living areas. We recommend using LightingShrink connections for the Guadalupe. Dimmable with Brilliance dimmer and most magnetic transformers. UL Certified E511083.
Fixture Finishes

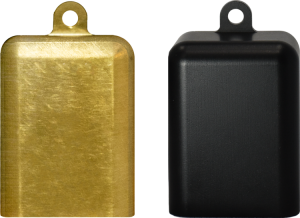

The Guadalupe fixture is available in the following finishes: machined brass or blackened brass.
Machined brass offers a beautiful living finish that weathers over time to a unique patina.
To clean the fixture, periodically wipe it down with a mild soap and water.
INSTALLATION
INSTALLING THE FIXTURE
-
Using a torpedo level and the mounting template provided, align and mark the screw and cable holes.
-
Drill the appropriate holes for the building materials to which the fixture will be mounted. Pre drill if necessary.
-
Insert and thread in the bottom mounting screw.
-
Pass the fixture cable through the larger center hole.
-
Hang the fixture on the bottom screw.
-
Align the top mounting tab with the top pilot hole and insert the mounting screw.
-
Tighten the top mounting screw until snug and then finish tightening the bottom screw until snug.
-
Connect the fixture wires to the main cable coming from the transformer.
