MTP – MultiTap Toroid Core Transformers – 12-22 Volt – Universal Lighting Systems

$619.39 $507.90 (Excl. CA. Sales Tax)
Weight: 24lb
Universal Lighting Transformers * Choose your Wattage Option for Universal Lighting Transformer
How many units?

Category Transformers
Supplier screen-shot-2018-03-09-at-10-33-27-pm-png

MTP - 12-22v Toroid Transformers

MODELS

  • MTP0300SS     300w     12,13,14,15,16,17,18,22 volt taps
  • MTP0600SS     600w     12,13,14,15,16,17,18,22 volt taps
  • MTP0900SS     900w     12,13,14,1516,17,18,20,22 volt taps

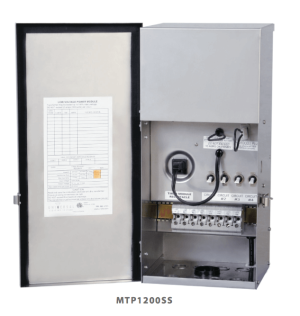

  • MTP1200SS    1200w     12,13,14,15,16,17,18,20,22 volt taps

DIMENSIONS

  • 300 & 600 - 6-1/5" W x 16-1/2" H x 6" D
  • 900 & 1200 - 8-1/2" W x 17-1/2" H x 7" D

MATERIAL/FEATURES

  • 304 Stainless Steel
  • ETL Approved to UL1838
  • Bottom panel pre-punched with conduit knockouts, removable
  • Quick mount bracket allows mounting wihtout templates
  • Lifetime Warranty - Stainless Steel Case and Toroidal Core
  • Sealed, removable, locking hinged doors
  • Field replaceable components: circuit breakers, internal receptacle, terminal block, photo cell bypass loop, surge suppressor.

FINISH

  • Muted Stainless Steel

ELECTRICAL

  • 6' Heavy Duty 3 Prong Power Cord
  • Oversized terminal blocks allow for (10) #12/2 or (8) #10/2 wire
  • Primary Side Thermal Protection
  • Secondary Side Magnetic Circuit Breakers
  • Fully Epoxy Encapsulated Toroidal Core
  • Single Core Technology
  • Surge suppressor soft start protects against primary overload on startup
  • Internal Wiring rated to 125° C
  • 115 AMP rated terminal block
  • Primary AMP Loop on 900W model
  • Plug and Play quick connect Photo Cell Loop

OPTIONS

  • PC - Photo Cell
  • PC-R - Photo Cell - Remote Mount with 10' lead
  • MT1 - Mechanical Timer - 48 on/off settings
  • DT - Digital Timer - 7 day programmable
  • AT1 - Astronomical Timer - Digital, 28 on/off programs, custom programming, adjudtd timing to seasonal changes automatically

MTP

Click image to Download pdf
