Direct Burial Junction Boxes by Focus Industries
Weight: 2lb

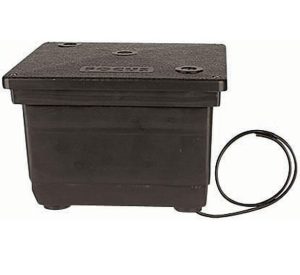

Direct Burial Junction Boxes
NEW: Die Cast Brass cover for DBR-55-JB now available
• Bronze high temperature fiberglass reinforced composite box and cover (heavy duty)
• Nema 12: below grade enclosure for direct burial applications
• 1/2″ NPS & 3/4″ NPS bottom hubs for line voltage input & feed through.
Ships standard with 2x 1/2″ NPS holes; one open one plugged
• 1/2″ NPS hubs on cover for fixture and or photocell mounting (consult factory for details)
• Neoprene sponge gasket to keep enclosure dry
• Covers secured with #10 3/4″ Flathead Stainless Steel Phillips Screws
• Beveled Top to allow for drainage
WARRANTY
• 3 year warranty
INSTALLATION NOTES
• Must be installed away from standing water
• Allow for drainage
