CL-366- Brick Step Lights by Corona Lighting
HOUSING:
White powder coated steel mount box with two S.C. bayonet sockets.
FACE PLATE:
Stamped aluminum UV powder coated available in
BK-Black and also

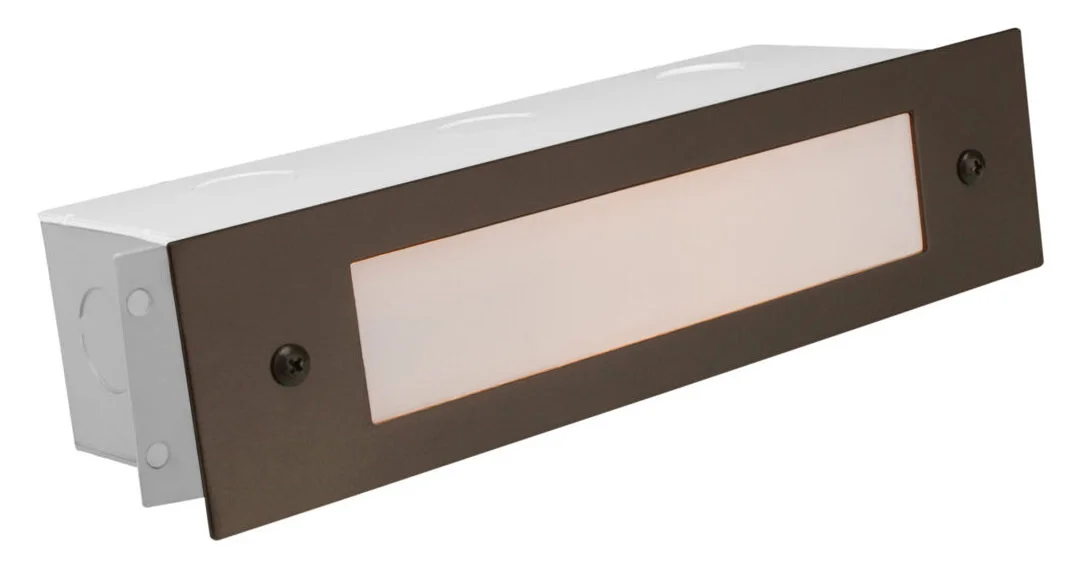

BZ-Bronze

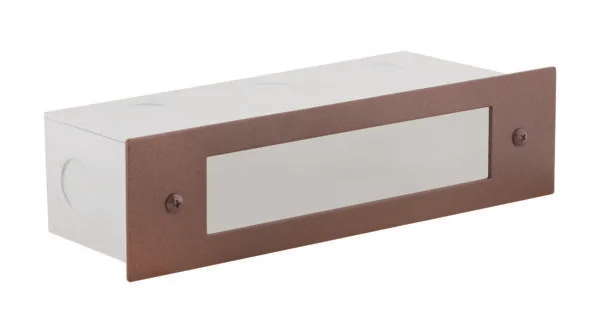

RT-Rust

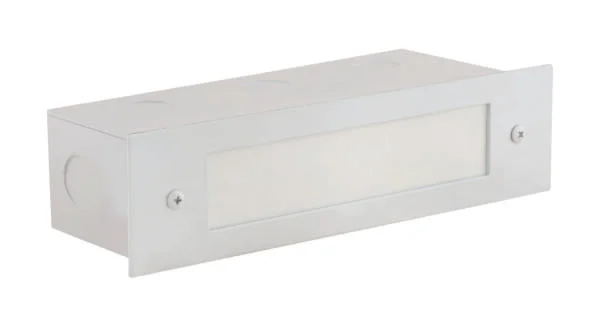

WH-White
Stamped brass available in AB-Antique Bronze, OC-Old Copper, and SI-Silver Plated. Stamped Copper available in RC-Raw Copper.
All with silicone gasket.
LENS:
High impact white polycarbonate sealed and secured to face plates.
LAMP TYPE:
12V, S.C. bayonet, 2 x 27W max. Available with T5 wedge lamp, 2 x 18W max.
See page 88 for xenon, halogen and T5 wedge base LED lamps.
MOUNTING: Recessed box to mount into concrete, brick and masonary. For outdoor use only.
WIRING:
Fixture is prewired with a 12 inch pigtail wire.
Remote 12 Volt transformer is required.
See transformers and accessories for variety of options and choices.
30 foot 18-2 direct burial cable available. When ordering, add -30 to end of product number.
When ordering, add the 2 letter color code to the end of the product number.
