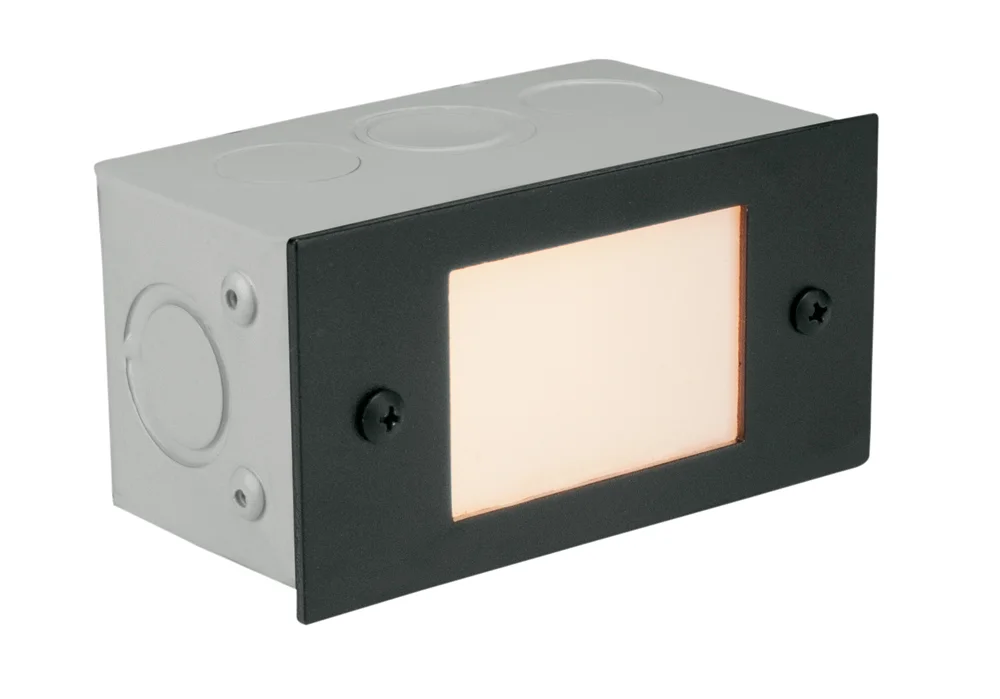

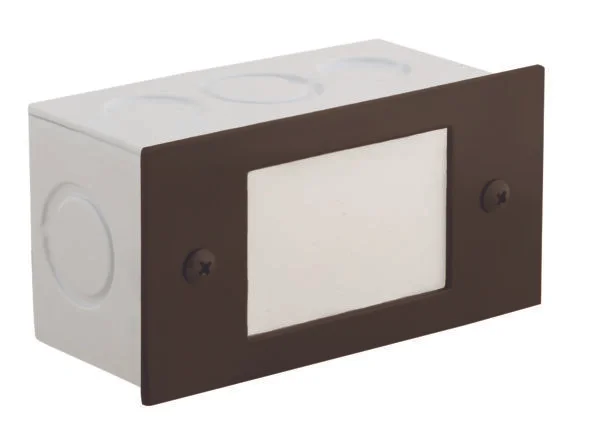

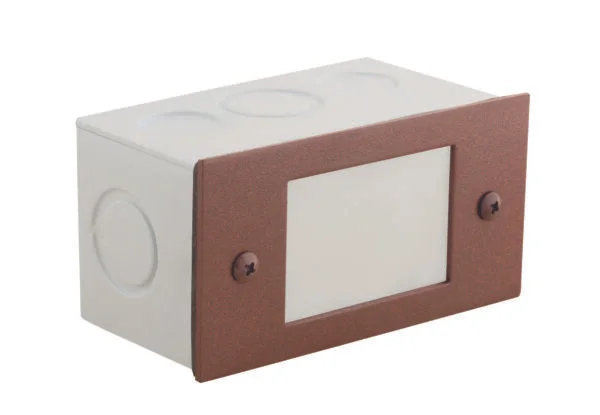

CL-360 Slim Step Light by Corona Lighting
CL-360 Slim Step Lights
Housing
White powder coated steel mount box with S.C. bayonet socket.
Faceplate
Stamped brass available in AB-Antique Bronze. All with silicone gasket.
Also available in BK- Black, BZ- Bronze, GM- Gun Metal, OC- Old Copper, RC- Raw Copper, RT- Rust, SI- Silver Plated, and WH- White.
Lens
High impact white polycarbonate sealed and secured to face plates.
Lamp
12V, S.C. bayonet, 27W max.
Fixture is compatible with LED, Xenon and halogenlamps. See lamp guide for information.
Gasket
Silicone gasket providing water-tight protection.
Wiring
Fixture is prewired with a 12in direct burial cord. Wire connector sold seperately. Universal connector (CX-839) is available from Corona Lighting
Mounting
Recessed box to mount into concrete, brick and masonry. For outdoor use only.
Electrical Notes
- Fixture is supplied with 18W S.C. Bayonet lamp.
- Lamp operating voltage ranges are:
- Halogen: 11-12.5V
- LED: 10-18V
- Remote 12 Volt transformer is required..
- See transformers and accessories for variety of options and choices.
- When ordering, add the 2 letter color code to the end of the product number.
