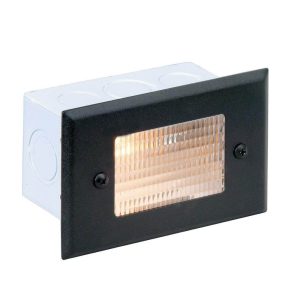

CL-350 Step Light by Corona Lighting
HOUSING:
White powder coated steel mount box with Single Contact Bayonet (SCB) socket.
FACE PLATE :
Stamped steel available in
CU-Copper Plated
PB-Polish Brass Plated
SI-Silver Plated
Polyester UV powder coated in
BK-Black
BZ-Bronze
WH-White
all with silicone gasket.
LENS:
Clear polycarbonate.
Lenses are sealed and secured to face plates.
LAMP TYPE:
Available with S.C. bayonet lamp.
MOUNTING:
Recessed box to mount into concrete, brick, and masonary. For outdoor use only.
WIRING:
Fixture is prewired with a 12-inch pigtail wire.
Fixture is supplied with 18W SCB lamp.
Remote 12 Volt transformer is required.
See transformers and accessories for variety of options and choices.
Alternative steel mount box is available. Size: 3" width x 1.75" height x 2" depth.
30 foot 18-2 direct burial cable available. When ordering, add -30 to end of product number.
When ordering, add the 2 letter color code to the end of the product number.
