Pinnacles Soft Accent Light by Brilliance Metal Works
PINNACLES
The Brilliance Soft Accent Light comes complete with a frosted lens, Brilliance Metal Works signature adjusting system with 22 points of articulation in 10-degree increments, ABS mounting stake, and Lighting Shrink professional crimp and heat shrink cable connector.
USE
Up lighting, grazing, and backlighting techniques. Best used when low level wall wash techniques are required
LAMP : G4 Wafer

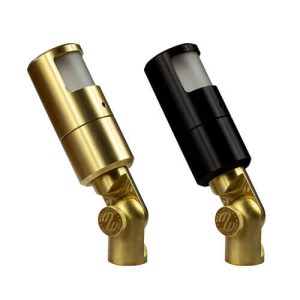

FINISH : Brass, blackened brass
INSTALLING THE LAMP
1. Loosen the Allen set screw at the bottom of the fixture.
2. Remove the brass cap.
3. Install the G4 lamp into the socket.
4. Place the brass cap back on the fixture body.
5. Adjust the window in the direction light is desired.
INSTALLING THE FIXTURE
1. Dig a hole in the ground approximately 4” wide by 10” deep.
A rubber mallet may be used to drive the stake into the ground when working with soft soil.
2. Lay the power cable from the fixture into the slotted relief on the stake.
3. Screw the fixture into the stake.
4. Use a level to assure the top of the spike is level with the ground.
ADJUSTING THE FIXTURE
1. Turn the knuckle counterclockwise to loosen the knuckle.
2. Rotate the fixture vertically to the desired position.
3. Turn the knuckle clockwise to hold it in the desired position.
