Photon by Unique Lighting Systems – PHOS

$88.50 $70.80 (Excl. CA. Sales Tax)
Weight: 2lb
Bulb Options * Fixtures ship without bulbs unless bulbs are specified.
Select Unique Elements Color * Select Unique Elements Color
How many ?

Category Spot Lights / Up Lights
Supplier uniquefancyfat-jpg

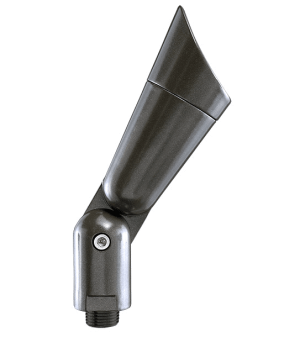

Photon®

Angle Shroud

The Photon® fixture is designed primarily as an uplight. Due to its smaller size, this fixture is ideal for achieving an elegant lighting effect in small, tight spaces.

Features include, Marine grade A360 alloy construction, Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion, 15’ HUB-ready wire lead, 1' FLEX GOLD™ Auxiliary Lead, Composite stake with molded brass threaded insert. Available in shrouded and non-shrouded version. Dual silicone o-ring seal. Accepts Unique’s FLEX GOLD™ Series LED MR11 lamps or halogen lamps. Pre-Lamped now available!

BodyTUV_Rheinland

Precision machined from Marine grade A360 alloy. Body design provides enclosed, water resistant wire way to protect wires. Features an integral knuckle for maximum mechanical strength.

Gasket

Two high-temperature silicone o-ring for a water-tight seal.

Knuckle

Machined knuckle with a solid stainless steel Allen bolt. Vertical tilt for easy aiming.

Shroud

Precision machined and comes with a factory sealed shock resistant glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory.

Finish

Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion.

Lens

Flat clear tempered glass. Patented removable lens. The full gasket lens is held in place with a threaded lens retainer.

Lamp

For use with FLEX GOLD™ Series LED lamps available in 2W MR11. LED lamps are available in 2700K color temperatures. Halogen lamp up to a 20W MR11 lamp.

Electrical Requirements
A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for FLEX GOLD™ Series LED MR11 lamps is 10V-15V.

Lamp Connection

Specification grade, nickel lamp holder. GU5.3 base.

Wiring

15’ 18/2 wire lead and 12″ FLEX™ Auxiliary lead. Pre-stripped Hub-ready leads for quick installation.

Mounting Stake

Composite stake with molded brass threaded insert.

PHOTON SPEC SHEET
