Nucleus by Unique Lighting – NUCL

$90.00 $72.00 (Excl. CA. Sales Tax)
Weight: 2lb
UNIQUE MR16 BULB OPTIONS * Need Help Deciding which bulb is right for your application? Feel free to call or e-mail our experts for help. 866-523-7774 or info@yardillumination.com
Select Unique Elements Color * Select Unique Elements Color
How many ?

Category Spot Lights / Up Lights
Supplier uniquefancyfat-jpg

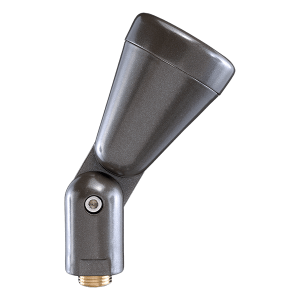

Nucleus®

The Nucleus® fixture is designed to illuminate shrubs, trees, signage,architectural facades and more.

Features include, Marine grade A360 alloy construction, Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion, 15’ hub-ready wire lead, 1' FLEX GOLD™ Auxiliary Lead, Composite stake with molded brass threaded insert. Available in shrouded and non- shrouded version. Dual silicone o-ring seal. Accepts Unique’s FLEX GOLD™ Series LED MR16 lamps or halogen lamps. Pre-Lamped now available!

BodyTUV_Rheinland

Precision machined from Marine grade A360 alloy. Body design provides enclosed, water resistant wire way to protect wires. Features an integral knuckle for maximum mechanical strength.

Gasket

Two high-temperature silicone o-ring for the water-tight seal.

Knuckle

Machined knuckle with a solid stainless steel Allen bolt. Vertical tilt for easy aiming.

Shroud

Precision machined and comes with a factory sealed shock resistant glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory.

Finish

Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion.

Lens

Flat clear tempered glass. Patented removable lens. The full gasket lens is held in place with a threaded lens retainer.

Lamp

For use with Flex Gold Series Lamps LED lamps are available in 2700K, 3000K and 5000K color temperatures. Halogen lamp up to a 35W MR16 lamp.

Electrical Requirements
A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 12V FLEX GOLD™ Series LED lamps is 10V-15V.

Lamp Connection

Specification grade, nickel lamp holder. GU5.3 base.

Wiring

15’ 18/2 wire lead and 1′ FLEX™ Auxiliary Lead. Pre-stripped Hub-ready leads for quick installation.

Mounting Stake

Composite stake with molded brass threaded insert.

Nucleus Spec Sheet
