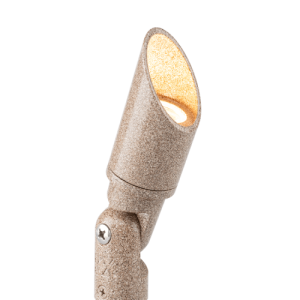

MP Up Light by FX Luminaire
Weight: 1.5lb
Being the smallest scale Up Light in the FX family, the MP is easy to integrate into any intimate garden space. It is an excellent choice for illuminating small garden elements such as dwarf trees. Its tiny size will hide seamlessly among plants or boulders to keep the lighting source a secret.
Quick Facts
- Die-cast aluminum construction
- Two layer anodization and superior outdoor TGIC powder-coat finish options
- MR-11 lamp and GU4 base
- ProAim(R) adjustability
- Compatible with MR-11 lens accessories
- Input voltage: 10 to 15 VAC/VDC
- Phase dimmable
Materials
Die-cast zinc/aluminum alloy housing, shroud, and knuckle with stainless steel hardware.
Socket
GU4 socket with retaining clips for MR-11 lamps. Ceramic socket base with heat-resistant contact pad. Stainless steel retaining clips ensure high spring force retention.
Lamp
GU4 lamp base. Preinstalled options include MR-11 LED lamp.
Wiring
18 AWG (1 mm); SPT-1W; 220°F (105°C); 300 V; 16" (405 mm) length
Power
Input 10 to 15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately).
Housing
Die-cast zinc/aluminum alloy housing with capacity for one standard MR-11 lamp.
Lens
Tempered glass lens with shock resistance and high tolerance for thermal expansion and stress.
Hardware
Stainless steel angle lock screw with setscrew. Includes 10" (254 mm) ABS slotted installation spike.
Finish
Two-layer protection of sulfuric acid anodization and polyester TGIC powder-coat finish, providing superior outdoor weathering in all conditions. Tested to ASTM standards.
Weight
1.3 lbs (0.6 kg)
Control
Zoning and dimming available with use of Luxor® Technology and Luxor Low- Voltage CUBE (LCM-LV). Luxor Technology allows up to 250 groups, dimmable in 1% increments between 0 and 100%.
Shroud
Die-cast zinc/aluminum alloy shroud with 15° cutoff.
Knuckle
Die-cast zinc/aluminum alloy knuckle with 1/ 2''-14 (13 mm) NPSM threads. Compress and lock features prevent slip after installation. Offers 9° increments of adjustability over 220° of vertical adjustment.
Installation Requirements
Designed for installation in the upward direction only.
Warranty
10-year limited warranty on fixture; 3-year limited warranty on LED lamp
Listings
rohs
ul-us
