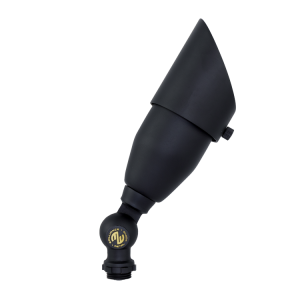

Eco Directional Light by Brilliance Metal Works
The Eco Series Directional Light comes with an MR16 Ecostar lamp (4W 2700K 30° 350 Lumens) and is ready to install right out of the box. It includes a glass convex lens to prevent water build up. The spun brass construction features a baked enamel finish, and the design includes two O-rings to mitigate water and condensation intrusion. The Eco Directional Light features an adjustment system, which allows for 25 points of articulation of the knuckle. A set screw secures the fixture’s cap so it does not come off when pointed down and the knob makes it easy to find and adjust in low light.
| ECO DIRECTIONAL LIGHT | |
|---|---|
| Use | Uplighting, Grazing, Backlighting, and Wall Washing (When Used with 120 Degree Lamps Only) |
| Finish | Black Brass Baked Enamel |
| Includes | Lamp, Glass Convex Lens, and Mounting Stake |
| Order with Lamp
MR16 ECOSTAR, 4W, 2700K, 30° |
ECO-DL-MR16-ECO |
Fixture Finishes
The Eco Directional Light has a Black Brass Baked Enamel finish.
To clean the fixture, periodically wipe it down with a mild soap and water.
INSTALLATION
SOFT SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE
-
Connect the power cable from the fixture body to the landscape cable.
-
Lay the power cable into the slotted relief on the stake.
-
Press the fixture and stake into the ground.
-
Use a level to ensure the top of the stake is level with the ground.
HARD SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE
-
Unscrew the fixture body from the stake.
-
Dig a hole approximately 4” wide by 10” deep and gently tap the stake into the ground with a rubber mallet.
-
Use a level to ensure the top of the stake is level with the ground.
-
Reinstall the fixture body onto the stake and lay the power cable into the slotted relief on the stake.
-
Connect the power cable from the fixture body to the landscape cable.
ADJUSTING THE FIXTURE
-
Turn the thumbnut counter-clockwise to loosen the knuckle.
-
Rotate the fixture vertically to the preferred position.
-
Turn the thumbnut clockwise to hold it in the preferred position. Adjusting the fixture allows for dark sky ordinance applications.
