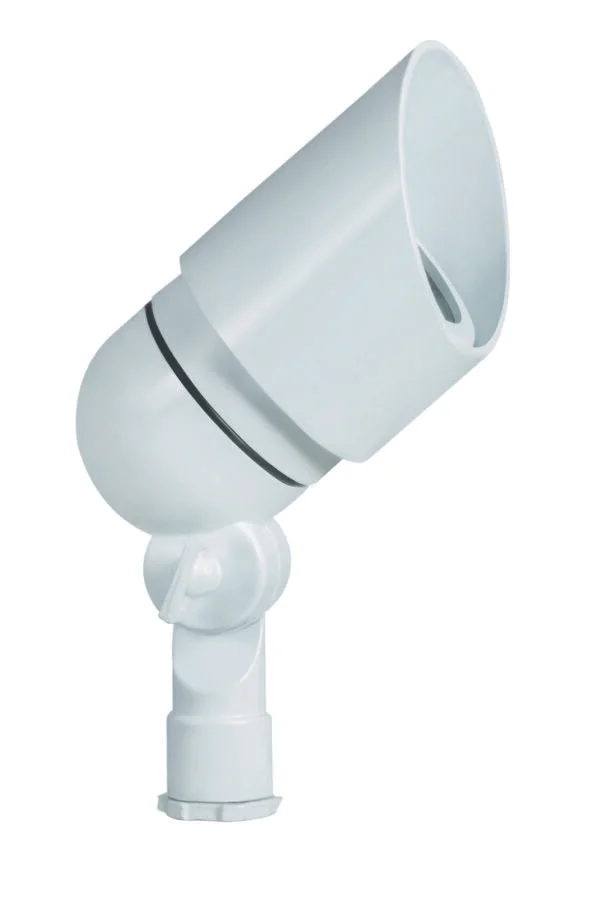

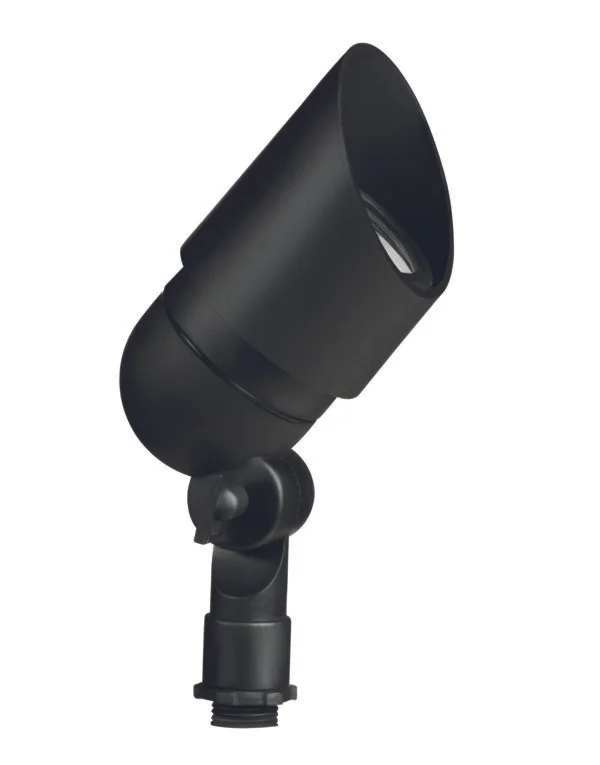

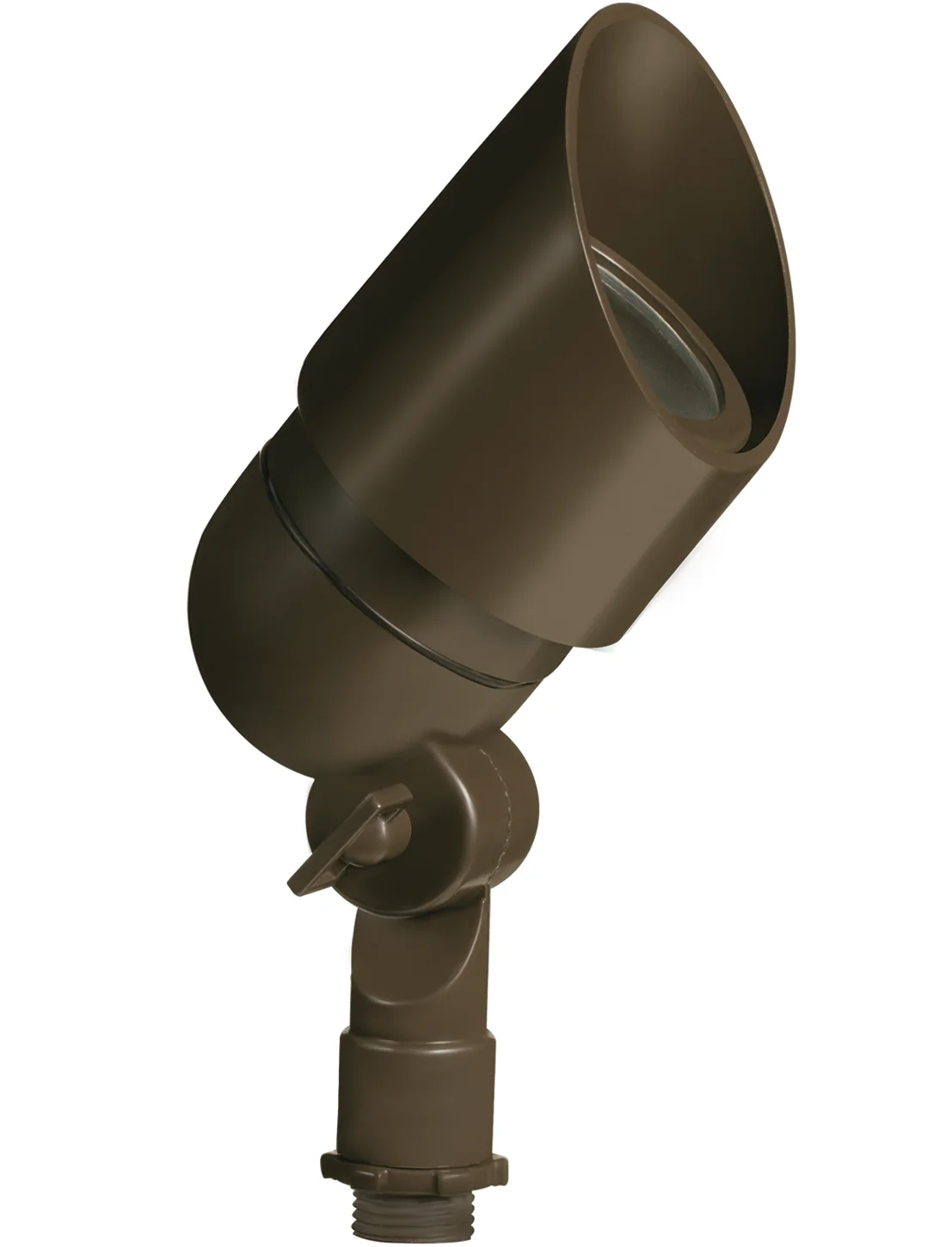

CL-505 Die-Cast Aluminum Directional Lights by Corona Lighting Products
Product Description:
Die-Cast value series aluminum fixture with a 360 degree rotatable shroud. Polyester UV Powder Coated fixture that is available in black, bronze, verde green, rust, granite and white finishes. Clear, tempered, and heat resistant glass with silicone gasket. Available in 3.5 or 5 watt MR-16 Retrofit able LED lamp.
HOUSING:
Die-cast Aluminum. 360 degree rotatable shroud.
FINISH:
Polyester UV powder coated, available in
BK-Black,
BZ-Bronze,
GT-Granite,
RT-Rust,
VG-Verde Green,
WH-White.
LENS:
Clear, tempered, and heat resistant glass with silicone gasket.
See accessories & parts for special effect lenses and honeycomb louver.
LAMP TYPE:
12V, MR-16 halogen, 50W max.
See lamp guide for LED and
color MR-16 lamps.
MOUNTING:
Adjustable cast aluminum knuckle with 1/2" NPT, including ground spike. Wire connector excluded.
See accessories & parts for optional mounting hardware.
WIRING:
Fixture is prewired with a 3-foot pigtail of direct burial cable.
Remote 12 Volt transformer is required.
See transformers and accessories for variety of options and choices.
When ordering, add the 2 letter color code to the end of the product number.
