Redwood Path Light by Brilliance Metal Works
REDWOOD
The Brilliance Metal Works Redwood Contemporary Path Light comes complete with a reflector window that can be adjusted from side to side and locked in with a set screw. ABS mounting stake, and a Lighting Shrink professional crimp, a heat shrink cable connector are included.
USE
Path, area, and garden accent lighting
LAMP : G4 Wafer

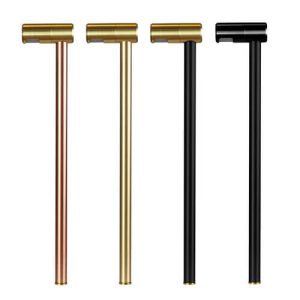

FINISH : Machined copper, brass, or blackened brass
INSTALLING THE LAMP
1. Loosen the Allen set screw at the bottom of the fixture.
2. Remove the brass cap.
3. Install the G4 lamp into the socket.
4. Place the brass cap back on the fixture body.
5. Adjust the window in the direction light is desired.
INSTALLING THE GROUND STAKE
1. Dig a hole in the ground approximately 4” wide by 10” deep.
A rubber mallet may be used to drive the stake into the ground when working with soft soil.
2. Lay the power cable from the fixture into the slotted relief on the stake.
3. Screw the fixture into the stake.
4. Use a level to assure the top of the spike is level with the ground.
ADJUSTING THE FIXTURE
1. Turn the threaded ring counterclockwise to loosen the lid.
2. Find the right light pattern by moving the lid up and down on the stem.
3. Turn the threaded ring clockwise to lock the lid into the desired position.
