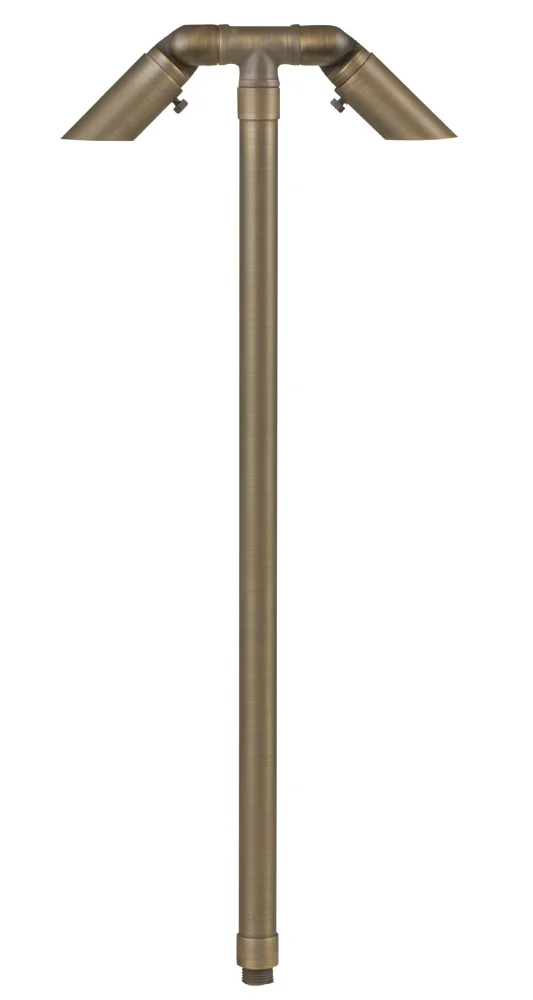

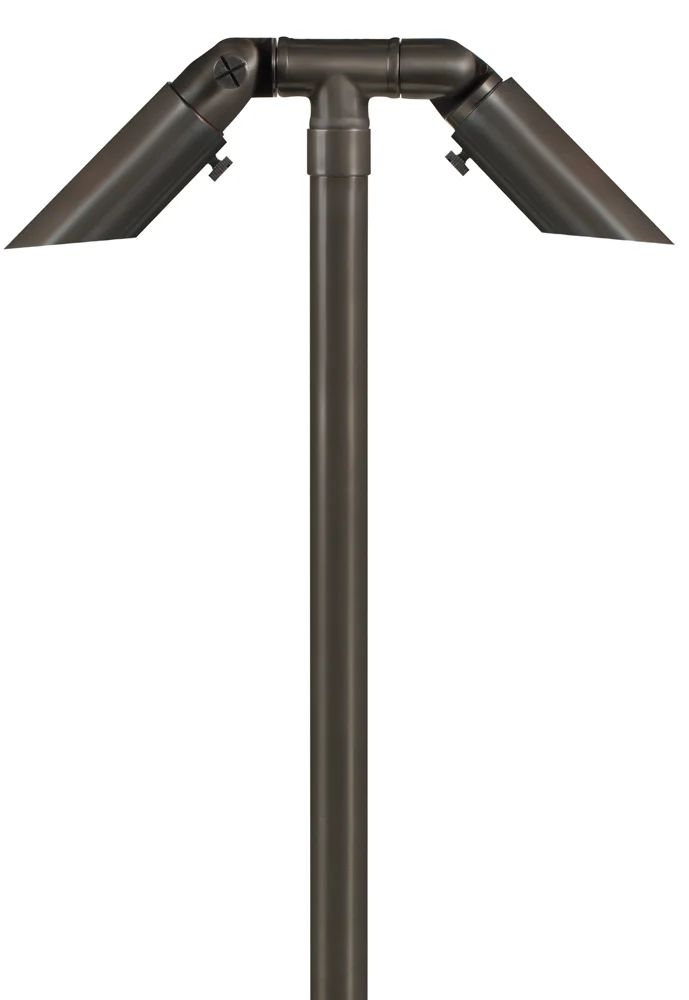

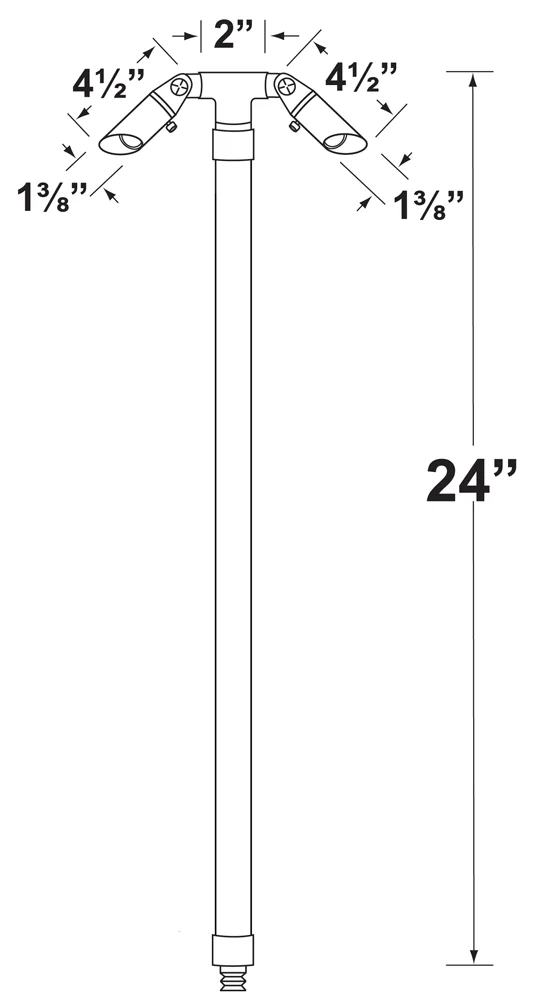

CL-730B-T Path Light by Corona Lighting
HOUSING & SHROUD
Corrosion Resistant Solid Brass.
Shroud is adjustable and extendable
STEM
Solid brass pipe with ½” NPT on bottom.
FINISH:
AB-Antique Bronze. Natural toning process. AB finish will vary due to artistic process.
GM-Gun Metal.
LENS:
Clear and heat resistant flat glass.
SOCKET:
Top grade fixed ceramic bi-pin socket, with lamp retension clip to securely hold the lamp in place.
LAMP:
12V, MR-8 halogen, 2x20W max. L-CMP-20 (2x20w) standard. 2x10w lamps also available
GASKET: Silicone gasket for water tight sealing
KNUCKLE:
Adjustable cast brass knuckle with thumb screw.
WIRING:
Fixture is prewired with a 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector CX-839 or gel filled wire nut CX-854 may be ordered to Corona Lighting.
MOUNTING:
Standard injection molded spike with ½” NPT threaded female hub.
WARRANTY:
Limited lifetime warranty on fixture housing and stem against manufacturer’s defects.
Electrical Notes:
Voltage Ranges are:11V-12.5V (halogen)
Proper greasing and lubrication theaded parts is suggested for installation.
Remote 12 Volt transformer is required.
Advanced Features:
Extendable shrouds for beam spread adjustment.
