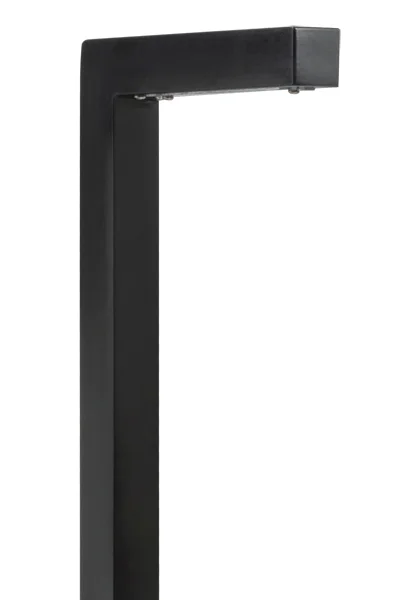

CL-717 Path Light by Corona Lighting
Weight: 2lb
HOUSING: | Corrosion resistant extruded aluminum "L" shaped design. |
STEM: | Solid aluminum pipe with ½" NPT on bottom. |

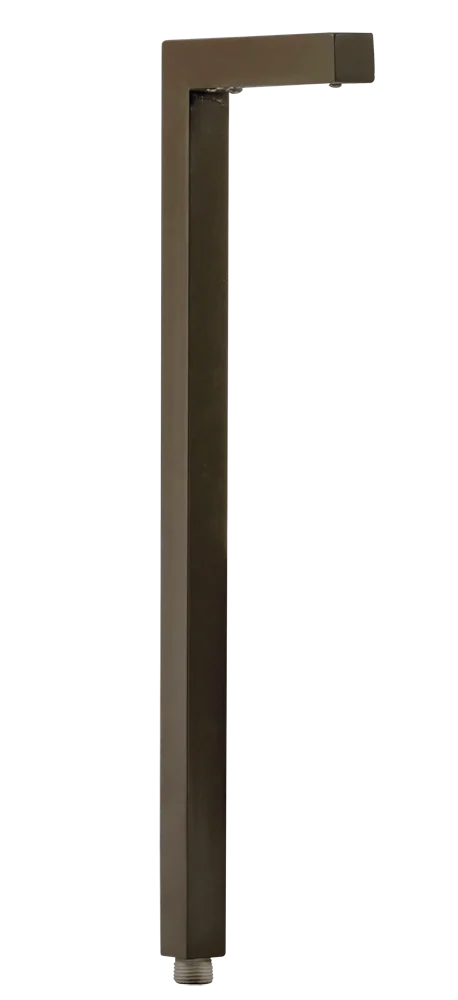

FINISH: | BK- Black. Smooth surface (no texture) polyester UV powder coated. Also available in BZ & brass options AB, GM , & SI. |
LENS: | High impact, sandblasted, heat resistant, clear glass. Extra frosted and linear lenses included. |
SOCKET: | Top grade fixed ceramic bi-pin socket. Easy tool-free lamp access. |
LAMP TYPE: | Designed to use a 12V, T3 LED lamps ONLY. Not to be used with halogen or Xenon lamps.
Compatible with all Corona T3 LED lamps. See lamp guide for information.
|
WIRING: | Fixture is prewired with a 3ft, 18-2 direct burial cord wire connector sold seperately. Universal connector (CX-839), silicone filled wire nut (CX-854) and quick locking wire connector (CX-LOC) are available from Corona Lighting |
MOUNTING: | Standard injection molded spike with ½" NPT threaded female hub. |
WARRANTY: | Limited Five (5) year warranty on fixture housing against manufacturer's defects. |
Electrical Notes:
- Fixture can be supplied with LED lamps only.
- Voltage range is 8V-21V
- Proper greasing and lubrication theaded parts is suggested for installation
- Remote 12 Volt transformer is required.
- See transformers and accessories for variety of options and choices
