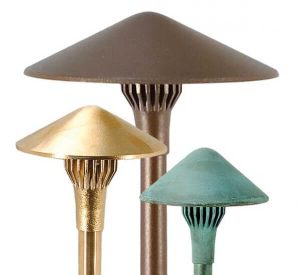

AL-17-LEDP 12V Area Light by Focus Industries

Category

Path Lights / Area Lights

Supplier

AL-17 12V Area Light by Focus Industries

CONSTRUCTION:  Cast Aluminum or Cast Brass China Hat
Matching Extruded Aluminum or Brass Stanchion with Fixed LED Heat Sink Hub

LENS:  High Impact Clear Acrylic

LED: 4w LED “Egg” Round Panel

CCT/LUMENS: 3000K / 300LM

CCT/LUMENS OPTION: 5200K / 320LM
(modify part number to “LEDP52”)

LIFETIME RATING:  50,000 hours

12V INTERNAL DRIVER:  5w 12vDC 350mA output, 12vAC input

SOCKET:  None – LED is hard wired inside fixture

MOUNTING:  FA-03 black 9″ ABS stake, tapped 1/2″ NPS

FINISH:  Aluminum-Black Texture Polyester Powder Coat (Optional Finishes Available)
Brass-Unfinished Brass (Optional Finishes Available)

NOTE:  120v – 277v Options Available with Remote LED Driver
Must use FA-26 Mounting Post or FA-JBOX Junction Box to House Remote Driver.



AL-17 Area Light Spec Sheet
