AL-04-LEDP China Hat Area Light by Focus Industries

$225.50 $180.40 (Excl. CA. Sales Tax)
Weight: 3lb
AL-04 Option Set *
Focus Aluminum Finish Color Options * Select a Focus Aluminum Finish Color Option
How many ?

Categories Path Lights / Area Lights , Integrated LED Fixtures
Supplier xfocus-logo-195x60-png-pagespeed-ic_-q3qzluysic-png

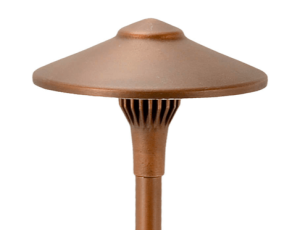

AL-04-LEDP China Hat Area Light by Focus Industries

Cast aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion with fixed LED heat sink hub

CONSTRUCTION:  Cast aluminum or cast brass China Hat; matching extruded aluminum or brass stanchion with fixed LED heat sink hub

LENS:  High impact clear acrylic

LIGHT SOURCE:  4w 300 lumen integrated round LED flat panel, warm white 3000K; optional cool white 5200K 320 lumen available (modify part number to “LEDP52”)

LIFETIME RATING:  50,000 hours

12V INTERNAL DRIVER:  5w 12vDC 350mA output, 12vAC input

SOCKET:  None – LED is hard wired inside fixture

MOUNTING:  Aluminum Models: FA-03 black 9″ ABS stake, tapped 1/2″ NPS
Brass Models: FA-03-LG ABS black 9″ ABS stake, tapped 1/2″ NPS

FINISH:  Aluminum-Black texture polyester powder coat. Optional finishes available.
Brass-Unfinished brass. Optional finishes available.

NOTE:  120v – 277v options available with remote LED driver.  Must use FA-26 mounting post or FA-JBOX junction box to house remote driver.

AL04LEDP Series Spec Sheet

AL04LEDP Instructions Guide
