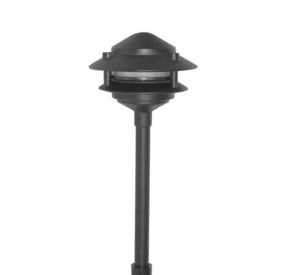

CONSTRUCTION:  Cast Aluminum Pagoda Hat with Matching Extruded Aluminum Stanchion.
(Two, Three or Four Tier Models Available)

AL-03 LENS:  3.25″ Tall Clear Prismatic Poly Carbonate
AL-03-3T LENS:  5″ Tall Clear Tempered Glass
AL-03-4T LENS:  7″ Tall Clear Tempered Glass

LIGHT SOURCE:  4w LED “Egg” Round Panel

CCT/LUMENS: 3000K / 300LM

CCT/LUMENS OPTION: 5200K / 320LM
(Modify Part Number to “LEDP52”)

LIFETIME RATING:  50,000 hrs

12V INTERNAL DRIVER:  5w 12vDC 350mA Output, 12vAC Input

SOCKET:  None – LED is Hard Wired Inside Fixture

MOUNTING:  FA-03 black 9″ ABS Stake, Tapped 1/2″ NPS

FINISH:  Black Texture Polyester Powder Coat (Optional Finishes Available)

NOTE:  120v – 277v Options Available with Remote LED Driver
Must use FA-26 Mounting Post or FA-JBOX Junction Box to House Remote Driver
