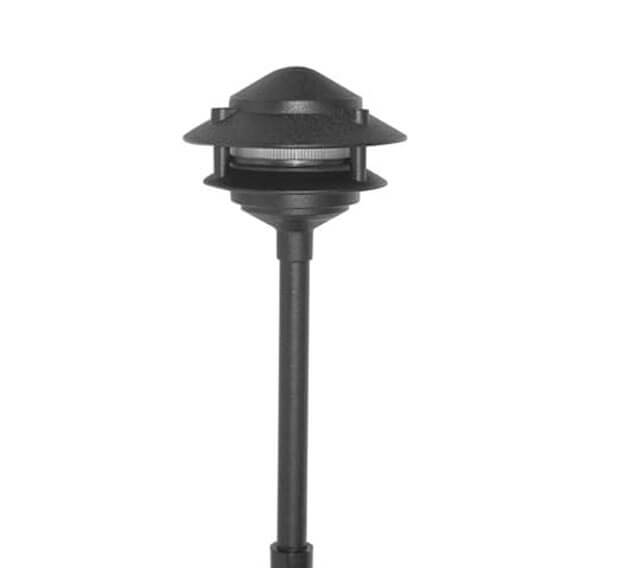

AL-03 Area Light by Focus Industries

$102.30 $81.84 (Excl. CA. Sales Tax)
Weight: 4lb
Focus Aluminum Finish Color Options * Select a Focus Aluminum Finish Color Option
AL-03 Construction Option *
How many ?

Category Path Lights / Area Lights
Supplier xfocus-logo-195x60-png-pagespeed-ic_-q3qzluysic-png

AL-03

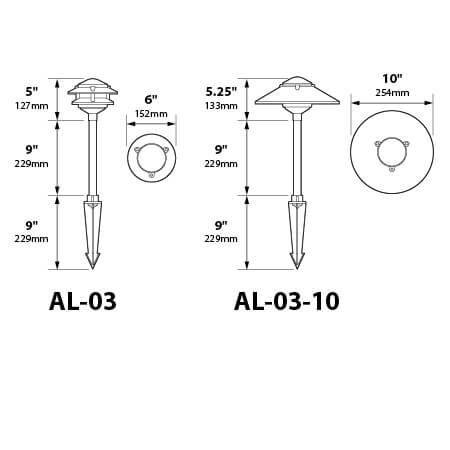

CONSTRUCTION:  Cast aluminum Pagoda Hat with matching extruded aluminum stanchion. Two, Three or Four tier models available.

AL-03 LENS:  3.25″ tall clear prismatic polycarbonate

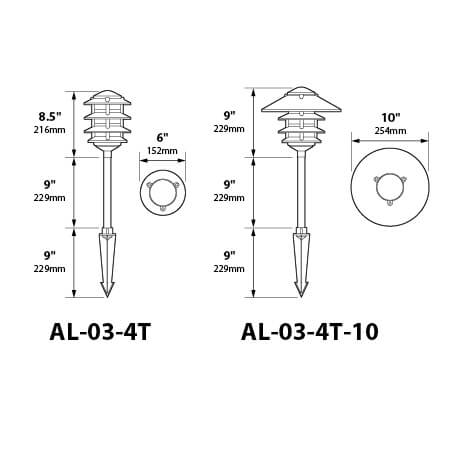

AL-03-3T LENS:  5″ tall clear tempered glass
AL-03-4T LENS: 7″ tall clear tempered glass

LAMP OPTIONS:  LED & legacy lamp options see specification sheet

SOCKET:  Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires

MOUNTING:  FA-03 black 9″ ABS stake, tapped 1/2″ NPS

FINISH:  Black texture polyester powder coat. Optional finishes available.

AL-03 Spec Sheet
