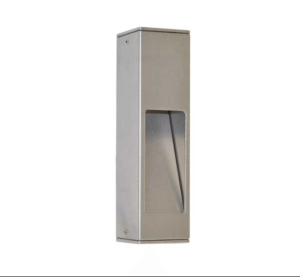

SL-58 12V Path Light
CONSTRUCTION: Extruded square aluminum or brass 2.25″ x 8.25″; matching die cast end caps
LAMP SUPPLIED: 3w 50,000 hours average rating OMNI-3 LED (-LED3)
LAMP OPTION: 10,000 hours average rating 20w Xenon (-X)
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200° C silicone lead wires.
No socket for LED Panel models
LED PANEL OPTION: 12v, 4w, 300 lumen integrated LED flat panel, warm white 3000K (-LEDP);
LED PANEL LIFETIME RATING: 50,000 Hours
LED PANEL INTERNAL DRIVER*: 4w 350mA output, 12v AC input. Voltage range of 9 to 18 volts with optimum operating range of 10 to 15 volts for consistent performance and brightness.
For use with magnetic transformers only.
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
120v standard wiring
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable
(12/2, 10/2 or 8/2 only) 12v only
MOUNTING: Two keyhole slots, two screws provided
FINISH: Aluminum – Black texture polyester powder coat. Optional finishes available
Brass – Unfinished brass. Optional finishes available
*NOTE: Optional 120v to 277v drivers available. Must use junction box
