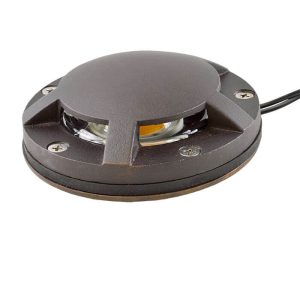

MARKER DOME: Cast aluminum or cast brass,
overall cover height is 1.25”, It is .875” from top of screw ledge
LENS: High impact clear tempered convex glass
O-RING: High temperature red silicone
LIGHT SOURCE: 4w 300 lumen integrated round LED flat panel, warm white 3000K;
Optional cool white 5200K 320 lumen available (modify part number to “LEDP52”)
LIFETIME RATING: 50,000 hours
12V EXTERNAL DRIVER: HW-12-535012LED
120V EXTERNAL DRIVER: HW-12-6350120LED
SOCKET: None – LED is hard wired inside fixture
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable
(12/2, 10/2 or 8/2 only) 12v only
FINISH: Aluminum – Black texture polyester powder coat. Optional finishes available
Brass – Unfinished brass. Optional finishes available
Note: Number of light openings may be customized, specify at time of order
VEHICULAR PRESSURE RATING: 8800 lbs

SL-20-SMMSM Spec Sheet
