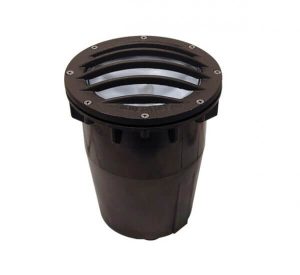

SL-20-MD In-Ground Light by Focus Industries

Categories

Specialty Lights , In Ground Lights / Well Lights

Supplier

SL-20-MD In-Ground Light by Focus Industries

CONSTRUCTION:
BODY: Fiberglass reinforced bronze composite with molded brass inserts for screws
LENS HOLDER & GRATE: Fiberglass reinforced bronze composite, cast aluminum or cast brass

AIMING CAPABILITY: 30˚

LENS: High impact clear tempered convex glass

LAMP SUPPLIED: MR16: 20w MR16 FL(BAB) 5000 hours average rating (50w max)
PAR36: 36w PAR36 (QWFL) 4000 hour average rating (50w max)

LAMP OPTIONS: MR16: We recommend 50,000 hour ARROW 4w LED (-LED) or
40,000 hour 5w (-LED5) or 7w (-LED7) ARROW Super Saver LED

SOCKET: MR16: High temperature ceramic GU5.3 bi-pin with 250°C silicone lead wires
PAR36: None, PAR36 lamp supplies connection via 1/4″ quick connect or stud terminal

WIRING: Black 4 foot 18/2 zip cord from base of fixture
For 25 foot 16/2 fixture lead wire add -25F to catalog number.

CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)

FINISH: Composite – Bronze
Aluminum Lens Holder/Grate – Black texture polyester powder coat. Optional finishes available.
Brass Lens Holder/Grate – Unfinished brass. Optional finishes available.

120v INTEGRAL TRANSFORMER MODELS AVAILABLE, ADD -T TO CATALOG NUMBER

FEATURES 120v INPUT, 12v OUTPUT/75w MAX, DIMMABLE (LINE SIDE)

SL-20-MD In-Ground Light Spec Sheet
