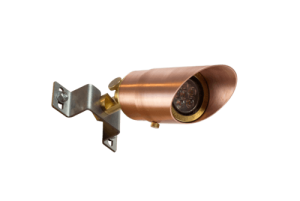

ARCHES Directional Downlight by Brilliance Metal Works

$420.84 $357.71 (Excl. CA. Sales Tax)
Weight: 2.6lb
Brilliance Arches Configuration *
How many units?

Category Down Lights
Supplier Brilliance Metal Works

ARCHES

The fixture comes complete with an adjustable glare shield, Brilliance Metal Works signature adjusting system with 22 points of articulation in 10 degree increments, a lighting shrink professional crimp and heat shrink cable connector, and a machined mounting canopy.

USES

surface mounted up and down lighting techniques

LAMP : MR16

FINISH : Machined Copper, Blackened Brass, Brass

INSTALL

1. Loosen the thumbscrew on the adjustable shield and remove it from the fixture body.
2. Unscrew the fixture body from the base.
3. Install the lamp in the socket with the tension spring behind the body of the lamp.
4. After the lamp is installed, compress the tension spring as you thread the metal body back onto base.
5. Return the adjustable shield to the desired position and tighten the thumbscrew to hold it in place.

Installing the fixture to surface mount:
IMPORTANT DO NOT INSTALL ON OR NEAR ANY HIGH VOLTAGE POWER LINES

Adjusting the fixture:

1. Turn the knuckle counter-clockwise to loosen the knuckle.
2. Rotate the fixture vertically to the desired position.
3. Turn the knuckle clockwise to hold it in the desired position

Arches Directional Downlight Cut Sheet
