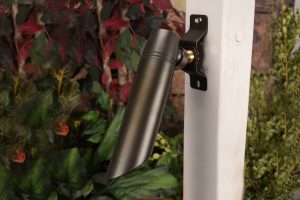

Lunar by Unique Lighting Systems 12 Volt Brass Down Light
Perfect for when installation conditions are recessed back or greater glare control is needed, the Lunar features a lock and load extended shroud. The versatile revolutionary ball and joint swivel mount allow a 360° rotation. The patented Stratosphere Tree Bracket makes installation fast and easy by attaching the bracket to the desired object and simply snapping the fixture in place.
Body
Precision machined from solid brass casting. Body design provides enclosed, water resistant wireway to protect wires.
Gasket
High temperature silicone o-ring for water-tight seal.
Knuckle
Machined brass, exclusive ball and joint. The 360° Orbital Mount™ allows for perfect directional fine tuning.
Shroud
Precision machined from brass. Accepts up to one additional lens/hex cell accessory.
Lens
Comes with a complete set of optical designer lenses including; spread lens, frosted, hex cell and blue lens for moonlighting effect.
Lamp
For use with a halogen lamp up to 35W MR16 lamp. FLEX™ Series LED lamps are available in 3W, 4W or 5W. LED lamps are available in 2700K and 3000K color temperatures.
Electrical Requirements
A remote 12V or 24V transformer required, may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 24V halogen lamps is 21.6V to 24V. Voltage range for FLEX™ Series LED MR16 lamps is 10V-18V.
Lamp Connection
Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring
Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Hardware
Stratosphere mounting bracket.
Finish
Exclusive Weathered Brass finish is standard. Unique™ Lightings’ Weathered Brass finish is a “living finish” and will naturally patina and change over time. Polyester powder coat finishes are also available.
Warranty
The Odyssey Family of products from Unique Lighting Systems® carries a Limited Lifetime Warranty against manufacturer’s defects.
Manufacturing
Manufactured to ISO 9001-2008 Quality Systems Standard.
