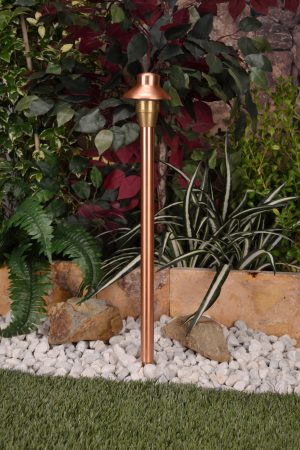

Illuminator 4 12 Volt Copper Path Light by Unique Lighting Systems
Petite in design, yet powerful, the Illuminator 4 offers discrete solutions to challenging installation areas. The frosted cylindrical lens minimizes glare while the 20 watt Astro-Brite lamp provides sufficient light to cast soft glows on any path or walking area. Ideal for walkways, the Illuminator 4 is also perfect for small planter areas in need of light. The adjustable rotating height setting feature give maximum design flexibility by creating different beam spreads with one fixture.
Materials
Crafted from extruded copper and machined brass.
Stem
Copper unibody design provides enclosed, water resistant wireway.
Collar
Machined brass with threaded height adjustment.
Shroud
Stamped Copper. Reflective Powder Coat Interior.
Lens
Shock resistant, frosted Borosilicate Glass lens.
Lamp
For use with a Xelogen lamp up to 20W. FLEX™ Series LED lamps are available in 1W or 2W T3 lamps. LED lamps are available in 3000K color temperatures.
Electrical Requirements
A remote 12V or 24V transformer required, may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 24V halogen lamps is 21.6V to 24V. Voltage range for 12V FLEX™ Series LED lamps is 10V-18V.
Socket
Specification grade, beryllium copper lamp holder. GU5.3 base.
Wiring
Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Stake
Standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
Finish
Exclusive Natural Copper finish is standard. Unique™ Lightings’ Natural Copper finish is a “living finish” and will naturally patina and change over time. Polyester powder coat finishes are also available.
Warranty
The Copper Knights™ Family of products from Unique Lighting Systems® carries a limited 15 year warranty against manufacturer’s defects.
Manufacturing
Manufactured to ISO 9001-2008 Quality Systems Standard.
