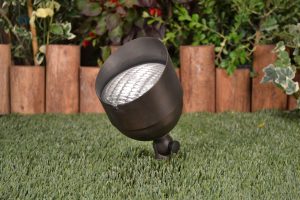

Bishop 12 Volt Brass Up Light by Unique Lighting Systems
A powerful and heavy duty directional up-light, the Bishop is perfect when illuminating trees, tall structures and vast spaces.
The Bishop can be used in numerous applications like back, shadow or graze lighting. It is also the perfect directional light to use when up lighting columns.
Body
Precision extruded from brass . Features an integral knuckle for maximum mechanical strength.
Gasket
High temperature silicone o-ring for water-tight seal.
Knuckle
Machined brass knuckle with a solid brass adjustable thumb screw. Vertical tilt of 270° and horizontal rotation of 360° for easy aiming. The Orbital Lock Nut™ allows for locking the horizontal rotation without adjusting the stake.
Shroud
Precision extruded from brass.
Lamp
For use with a halogen lamp up to 35W PAR36 lamp. FLEX™ Series LED lamps are available in 6W, 10W and 18W PAR36 lamps. LED lamps are available in 2700K and 3000K color temperatures.
Electrical Requirements
A remote 12V or 24V transformer required, may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. Voltage range for 24V halogen lamps is 21.6V to 24V. Voltage range for FLEX™ Series LED PAR36 lamps is 10V-15V.
Lamp Connection
PAR 36: Screw terminal.
Wiring
Exclusive UF Intelli-Flex wire with anti-moisture migration connections.
Mounting Stake
Standard mounting stake is injection molded PVC with a ½” NPS threaded female fitting.
Finish
Exclusive Weathered Brass finish is standard. Unique™ Lightings’ Weathered Brass finish is a “living finish” and will naturally patina and change over time. Polyester powder coat finishes are also available.
